High Capacity Shelving - H-Post - Open









Click part number to see image

W	D	H	type	5 shelf cat #	6 shelf cat #	8 shelf cat #	shelf capacity
Heavy-Duty

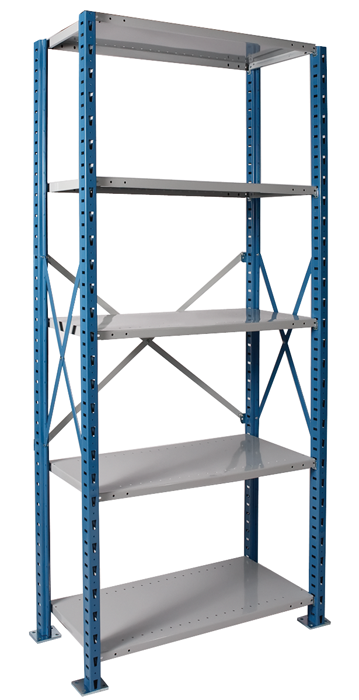

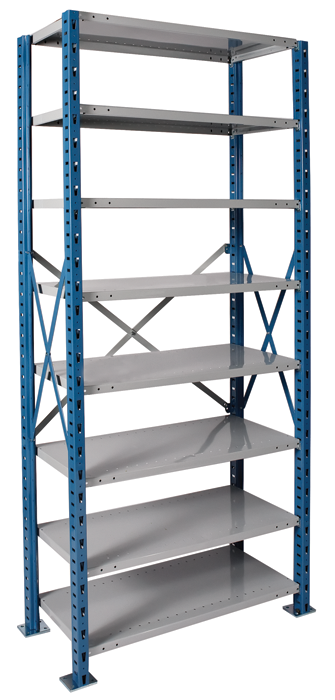

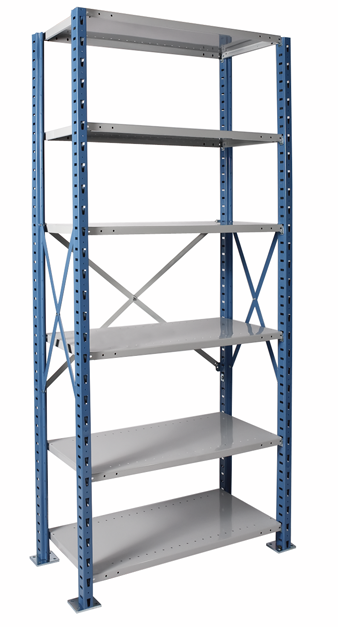

36	18	87	starter	H5510-1807	H5511-1807	H5513-1807	800

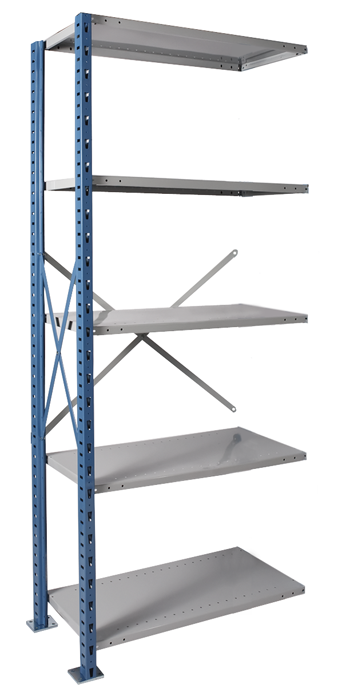

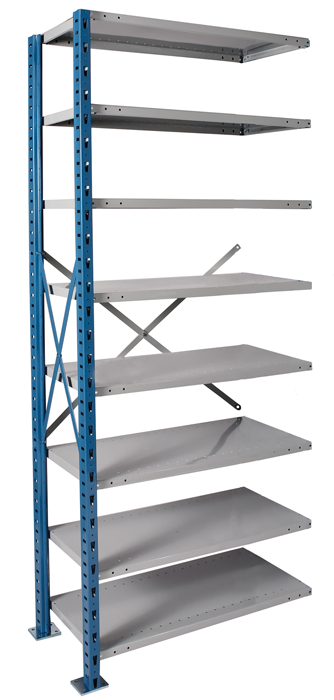

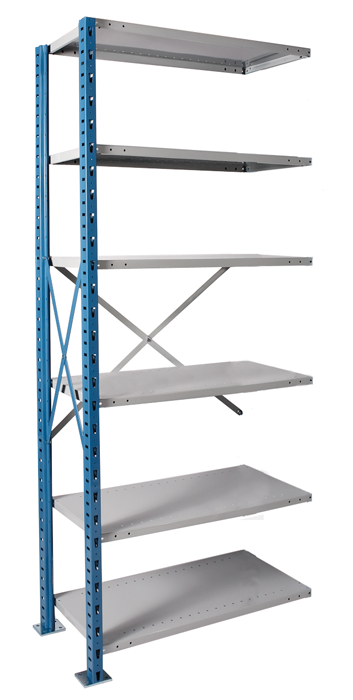

36	18	87	adder	AH5510-1807	AH5511-1807	AH5513-1807	800
36	24	87	starter	H5510-2407	H5511-2407	H5513-2407	800
36	24	87	adder	AH5510-2407	AH5511-2407	AH5513-2407	800
36	18	123	starter	H5510-1810	H5511-1810	H5513-1810	800
36	18	123	adder	AH5510-1810	AH5511-1810	AH5513-1810	800
48	24	123	starter	H5510-2410	H5511-2410	H5513-2410	800
48	24	123	adder	AH5510-2410	AH5511-2410	AH5513-2410	800
48	18	87	starter	H5710-1807	H5711-1807	H5713-1807	450
48	18	87	adder	AH5710-1807	AH5711-1807	AH5713-1807	450
48	24	87	starter	H5710-2407	H5711-2407	H5713-2407	500
48	24	87	adder	AH5710-2407	AH5711-2407	AH5713-2407	500
48	18	123	starter	H5710-1810	H5711-1810	H5713-1810	450
48	18	123	adder	AH5710-1810	AH5711-1810	AH5713-1810	450
48	24	123	starter	H5710-2410	H5711-2410	H5713-2410	500
48	24	123	adder	AH5710-2410	AH5711-2410	AH5713-2410	500
Extra Heavy-Duty
36	18	87	starter	H7510-1807	H7511-1807	H7513-1807	1200
36	18	87	adder	AH7510-1807	AH7511-1807	AH7513-1807	1200
36	24	87	starter	H7510-2407	H7511-2407	H7513-2407	1250
36	24	87	adder	AH7510-2407	AH7511-2407	AH7513-2407	1250
36	18	123	starter	H7510-1810	H7511-1810	H7513-1810	1200
36	18	123	adder	AH7510-1810	AH7511-1810	AH7513-1810	1200
36	24	123	starter	H7510-2410	H7511-2410	H7513-2410	1250
36	24	123	adder	AH7510-2410	AH7511-2410	AH7513-2410	1250
36	18	87	starter	H7710-1807	H7711-1807	H7713-1807	900
36	18	87	adder	AH7710-1807	AH7711-1807	AH7713-1807	900
48	24	87	starter	H7710-2407	H7711-2407	H7713-2407	900
48	24	87	adder	AH7710-2407	AH7711-2407	AH7713-2407	900
48	18	123	starter	H7710-1810	H7711-1810	H7713-1810	1200
48	18	123	adder	AH7710-1810	AH7711-1810	AH7713-1810	1200
48	24	123	starter	H7710-2410	H7711-2410	H7713-2410	1250
48	24	123	adder	AH7710-2410	AH7711-2410	AH7713-2410	1250

W	D	HeavyDuty	Extra Heavy Duty	Capacity
Additional Shelves
36	18	5138-3618PL	5139-3618PL	See above
36	24	5138-3624PL	5139-3624PL
48	18	5138-4818PL	5139-4818PL
48	24	5138-4824PL	5139-4824PL
