Black Rivetwell Boltless Shelving - Catalog
Black Rivetwell Shelving catalog lists all the model numbers and capacities based on your selection of decking. Choose from Particle board decking, wiredeck, EZ deck, or choose the unit itself with no deck. Rivetwell Black units are double-rivet shelving types and come in starter and adder units to adapt to your layout needs. Select 1 starter per row, and each additional unit can be an adder. No Deck level Capacity shows the capacity of the unit itself by level. Click images to enlarge.
- No Decking
- Particle Board
- Wire Deck
- EZ Deck

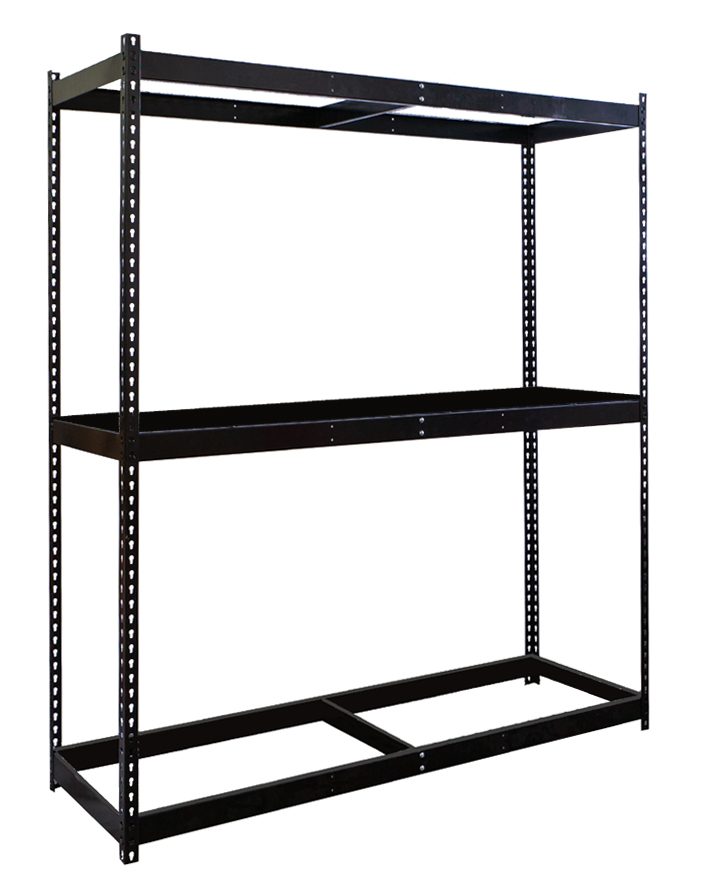

Black Rivetwell Shelving - No Decking
| Type | Width | Depth | Model No. No Deck | Level Capacity* |
|---|---|---|---|---|
| Starter | 48" | 18" | DRHC481884-3S-ME | 1400 |
| Add On | 48" | 18" | DRHC481884-3A-ME | 1400 |
| Starter | 48" | 24" | DRHC482484-3S-ME | 1400 |
| Add On | 48" | 24" | DRHC482484-3A-ME | 1400 |
| Starter | 48" | 30" | DRHC483084-3S-ME | 1310 |
| Add On | 48" | 30" | DRHC483084-3A-ME | 1310 |
| Starter | 48" | 36" | DRHC483684-3S-ME | 1220 |
| Add On | 48" | 36" | DRHC483684-3A-ME | 1220 |
| Starter | 48" | 48" | DRHC484884-3S-ME | 1125 |
| Add On | 48" | 48" | DRHC484884-3A-ME | 1125 |
| Starter | 60" | 18" | DRHC601884-3S-ME | 1200 |
| Add On | 60" | 18" | DRHC601884-3A-ME | 1200 |
| Starter | 60" | 24" | DRHC602484-3S-ME | 1200 |
| Add On | 60" | 24" | DRHC602484-3A-ME | 1200 |
| Starter | 60" | 30" | DRHC603084-3S-ME | 1200 |
| Add On | 60" | 30" | DRHC603084-3A-ME | 1200 |
| Starter | 60" | 36" | DRHC603684-3S-ME | 1200 |
| Add On | 60" | 36" | DRHC603684-3A-ME | 1200 |
| Starter | 60" | 48" | DRHC604884-3S-ME | 1200 |
| Add On | 60" | 48" | DRHC604884-3A-ME | 1200 |
| Starter | 72" | 18" | DRHC721884-3S-ME | 1000 |
| Add On | 72" | 18" | DRHC721884-3A-ME | 1000 |
| Starter | 72" | 24" | DRHC722484-3S-ME | 1000 |
| Add On | 72" | 24" | DRHC722484-3A-ME | 1000 |
| Starter | 72" | 30" | DRHC723084-3S-ME | 1000 |
| Add On | 72" | 30" | DRHC723084-3A-ME | 1000 |
| Starter | 72" | 36" | DRHC723684-3S-ME | 1000 |
| Add On | 72" | 36" | DRHC723684-3A-ME | 1000 |
| Starter | 72" | 48" | DRHC724884-3S-ME | 1000 |
| Add On | 72" | 48" | DRHC724884-3A-ME | 1000 |
| Starter | 96" | 18" | DRHC961884-3S-ME | 620 |
| Add On | 96" | 18" | DRHC961884-3A-ME | 620 |
| Starter | 96" | 24" | DRHC962484-3S-ME | 620 |
| Add On | 96" | 24" | DRHC962484-3A-ME | 620 |
| Starter | 96" | 30" | DRHC963084-3S-ME | 620 |
| Add On | 96" | 30" | DRHC963084-3A-ME | 620 |
| Starter | 96" | 36" | DRHC963684-3S-ME | 620 |
| Add On | 96" | 36" | DRHC963684-3A-ME | 620 |
| Starter | 96" | 48" | DRHC964884-3S-ME | 620 |
| Add On | 96" | 48" | DRHC964884-3A-ME | 620 |

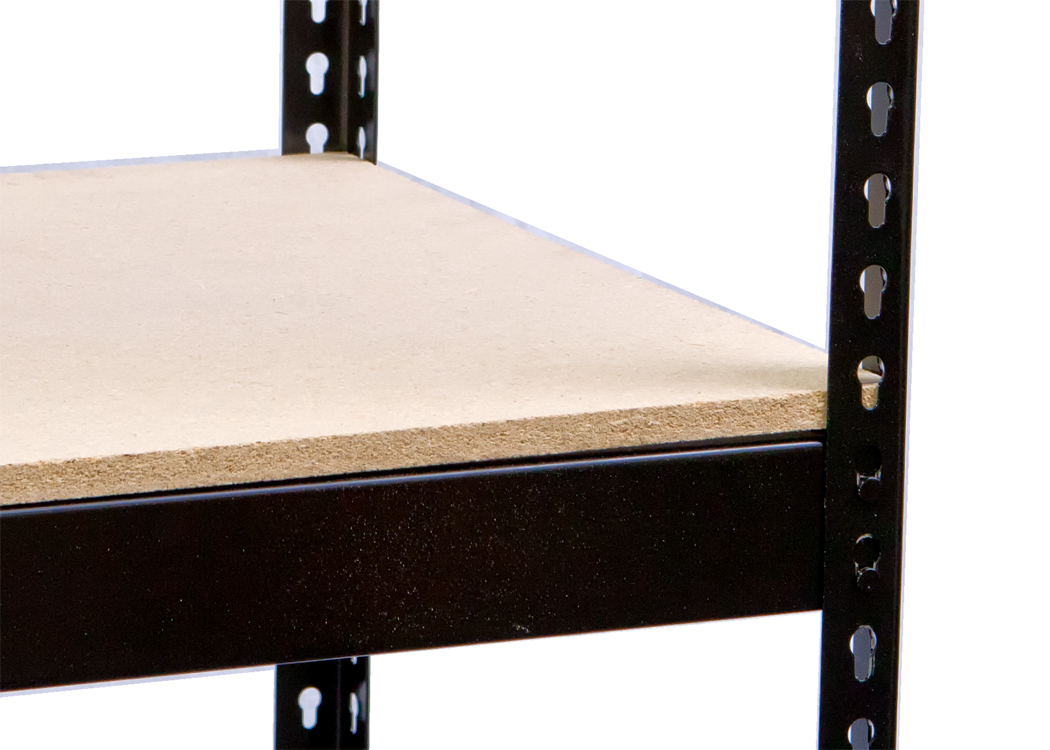

Black Rivetwell Shelving - Particle Board Decking
| Type | Width | Depth | Model No. With Particleboard | Level Capacity* |
|---|---|---|---|---|
| Starter | 48" | 18" | DRHC481884-3S-P-ME | 770 |
| Add On | 48" | 18" | DRHC481884-3A-P-ME | 770 |
| Starter | 48" | 24" | DRHC482484-3S-P-ME | 700 |
| Add On | 48" | 24" | DRHC482484-3A-P-ME | 700 |
| Starter | 48" | 30" | DRHC483084-3S-P-ME | 705 |
| Add On | 48" | 30" | DRHC483084-3A-P-ME | 705 |
| Starter | 48" | 36" | DRHC483684-3S-P-ME | 755 |
| Add On | 48" | 36" | DRHC483684-3A-P-ME | 755 |
| Starter | 48" | 48" | DRHC484884-3S-P-ME | 920 |
| Add On | 48" | 48" | DRHC484884-3A-P-ME | 920 |
| Starter | 60" | 18" | DRHC601884-3S-P-ME | 835 |
| Add On | 60" | 18" | DRHC601884-3A-P-ME | 835 |
| Starter | 60" | 24" | DRHC602484-3S-P-ME | 700 |
| Add On | 60" | 24" | DRHC602484-3A-P-ME | 700 |
| Starter | 60" | 30" | DRHC603084-3S-P-ME | 650 |
| Add On | 60" | 30" | DRHC603084-3A-P-ME | 650 |
| Starter | 60" | 36" | DRHC603684-3S-P-ME | 665 |
| Add On | 60" | 36" | DRHC603684-3A-P-ME | 665 |
| Starter | 60" | 48" | DRHC604884-3S-P-ME | 750 |
| Add On | 60" | 48" | DRHC604884-3A-P-ME | 750 |
| Starter | 72" | 18" | DRHC721884-3S-P-ME | 1000 |
| Add On | 72" | 18" | DRHC721884-3A-P-ME | 1000 |
| Starter | 72" | 24" | DRHC722484-3S-P-ME | 770 |
| Add On | 72" | 24" | DRHC722484-3A-P-ME | 770 |
| Starter | 72" | 30" | DRHC723084-3S-P-ME | 680 |
| Add On | 72" | 30" | DRHC723084-3A-P-ME | 680 |
| Starter | 72" | 36" | DRHC723684-3S-P-ME | 655 |
| Add On | 72" | 36" | DRHC723684-3A-P-ME | 655 |
| Starter | 72" | 48" | DRHC724884-3S-P-ME | 685 |
| Add On | 72" | 48" | DRHC724884-3A-P-ME | 685 |
| Starter | 96" | 18" | DRHC961884-3S-P-ME | 620 |
| Add On | 96" | 18" | DRHC961884-3A-P-ME | 620 |
| Starter | 96" | 24" | DRHC962484-3S-P-ME | 620 |
| Add On | 96" | 24" | DRHC962484-3A-P-ME | 620 |
| Starter | 96" | 30" | DRHC963084-3S-P-ME | 620 |
| Add On | 96" | 30" | DRHC963084-3A-P-ME | 620 |
| Starter | 96" | 36" | DRHC963684-3S-P-ME | 620 |
| Add On | 96" | 36" | DRHC963684-3A-P-ME | 620 |
| Starter | 96" | 48" | DRHC964884-3S-P-ME | 620 |
| Add On | 96" | 48" | DRHC964884-3A-P-ME | 620 |

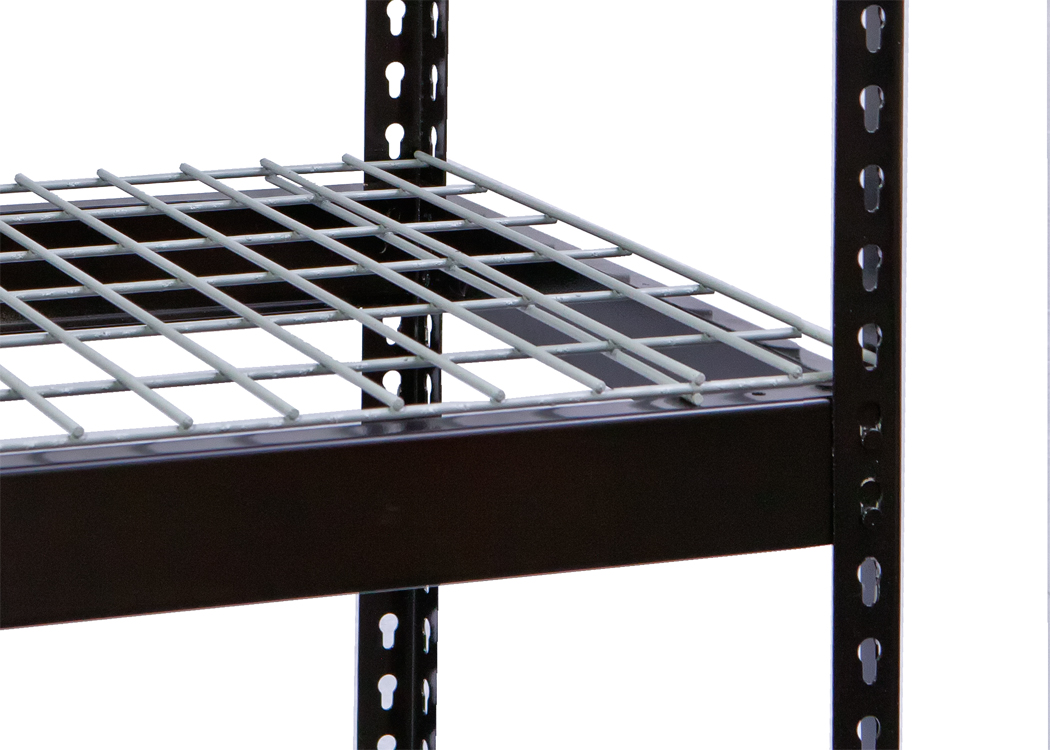

Black Rivetwell Shelving - Wire Decking
| Type | Width | Depth | Model No. With Wire Deck | Level Capacity* |
|---|---|---|---|---|
| Starter | 48" | 18" | DRHC481884-3S-W-ME | 900 |
| Add On | 48" | 18" | DRHC481884-3A-W-ME | 900 |
| Starter | 48" | 24" | DRHC482484-3S-W-ME | 700 |
| Add On | 48" | 24" | DRHC482484-3A-W-ME | 700 |
| Starter | 48" | 30" | DRHC483084-3S-W-ME | 550 |
| Add On | 48" | 30" | DRHC483084-3A-W-ME | 550 |
| Starter | 48" | 36" | DRHC483684-3S-W-ME | 500 |
| Add On | 48" | 36" | DRHC483684-3A-W-ME | 500 |
| Starter | 48" | 48" | DRHC484884-3S-W-ME | 500 |
| Add On | 48" | 48" | DRHC484884-3A-W-ME | 500 |
| Starter | 60" | 18" | DRHC601884-3S-W-ME | 1800 |
| Add On | 60" | 18" | DRHC601884-3A-W-ME | 1800 |
| Starter | 60" | 24" | DRHC602484-3S-W-ME | 1400 |
| Add On | 60" | 24" | DRHC602484-3A-W-ME | 1400 |
| Starter | 60" | 30" | DRHC603084-3S-W-ME | 1000 |
| Add On | 60" | 30" | DRHC603084-3A-W-ME | 1000 |
| Starter | 60" | 36" | DRHC603684-3S-W-ME | 1000 |
| Add On | 60" | 36" | DRHC603684-3A-W-ME | 1000 |
| Starter | 60" | 48" | DRHC604884-3S-W-ME | 1000 |
| Add On | 60" | 48" | DRHC604884-3A-W-ME | 1000 |
| Starter | 72" | 18" | DRHC721884-3S-W-ME | 1000 |
| Add On | 72" | 18" | DRHC721884-3A-W-ME | 1000 |
| Starter | 72" | 24" | DRHC722484-3S-W-ME | 1000 |
| Add On | 72" | 24" | DRHC722484-3A-W-ME | 1000 |
| Starter | 72" | 30" | DRHC723084-3S-W-ME | 1000 |
| Add On | 72" | 30" | DRHC723084-3A-W-ME | 1000 |
| Starter | 72" | 36" | DRHC723684-3S-W-ME | 1000 |
| Add On | 72" | 36" | DRHC723684-3A-W-ME | 1000 |
| Starter | 72" | 48" | DRHC724884-3S-W-ME | 1000 |
| Add On | 72" | 48" | DRHC724884-3A-W-ME | 1000 |
| Starter | 96" | 18" | DRHC961884-3S-W-ME | 620 |
| Add On | 96" | 18" | DRHC961884-3A-W-ME | 620 |
| Starter | 96" | 24" | DRHC962484-3S-W-ME | 620 |
| Add On | 96" | 24" | DRHC962484-3A-W-ME | 620 |
| Starter | 96" | 30" | DRHC963084-3S-W-ME | 620 |
| Add On | 96" | 30" | DRHC963084-3A-W-ME | 620 |
| Starter | 96" | 36" | DRHC963684-3S-W-ME | 620 |
| Add On | 96" | 36" | DRHC963684-3A-W-ME | 620 |
| Starter | 96" | 48" | DRHC964884-3S-W-ME | 620 |
| Add On | 96" | 48" | DRHC964884-3A-W-ME | 620 |

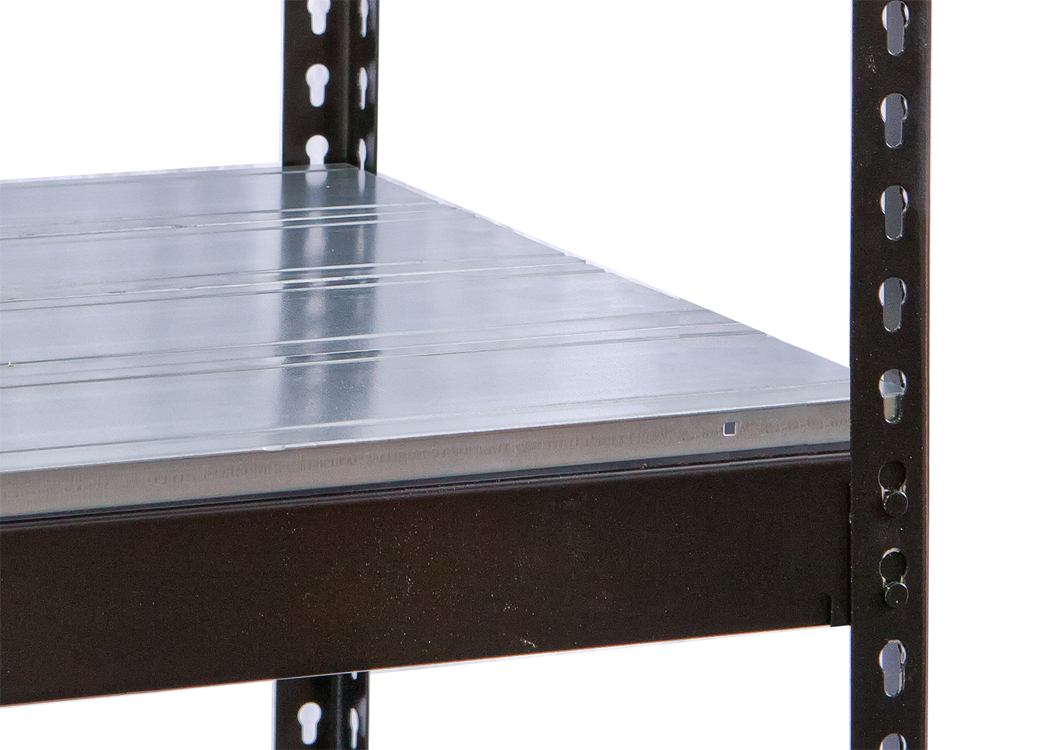

Black Rivetwell Shelving - EZ Deck
| Type | Width | Depth | Model No. With EZ Deck | Level Capacity* |
|---|---|---|---|---|
| Starter | 48" | 18" | DRHC481884-3S-E-ME | 770 |
| Add On | 48" | 18" | DRHC481884-3A-E-ME | 770 |
| Starter | 48" | 24" | DRHC482484-3S-E-ME | 700 |
| Add On | 48" | 24" | DRHC482484-3A-E-ME | 700 |
| Starter | 48" | 30" | DRHC483084-3S-E-ME | 705 |
| Add On | 48" | 30" | DRHC483084-3A-E-ME | 705 |
| Starter | 48" | 36" | DRHC483684-3S-E-ME | 755 |
| Add On | 48" | 36" | DRHC483684-3A-E-ME | 755 |
| Starter | 48" | 48" | DRHC484884-3S-E-ME | 920 |
| Add On | 48" | 48" | DRHC484884-3A-E-ME | 920 |
| Starter | 60" | 18" | DRHC601884-3S-E-ME | 835 |
| Add On | 60" | 18" | DRHC601884-3A-E-ME | 835 |
| Starter | 60" | 24" | DRHC602484-3S-E-ME | 700 |
| Add On | 60" | 24" | DRHC602484-3A-E-ME | 700 |
| Starter | 60" | 30" | DRHC603084-3S-E-ME | 650 |
| Add On | 60" | 30" | DRHC603084-3A-E-ME | 650 |
| Starter | 60" | 36" | DRHC603684-3S-E-ME | 665 |
| Add On | 60" | 36" | DRHC603684-3A-E-ME | 665 |
| Starter | 60" | 48" | DRHC604884-3S-E-ME | 750 |
| Add On | 60" | 48" | DRHC604884-3A-E-ME | 750 |
| Starter | 72" | 18" | DRHC721884-3S-E-ME | 1000 |
| Add On | 72" | 18" | DRHC721884-3A-E-ME | 1000 |
| Starter | 72" | 24" | DRHC722484-3S-E-ME | 770 |
| Add On | 72" | 24" | DRHC722484-3A-E-ME | 770 |
| Starter | 72" | 30" | DRHC723084-3S-E-ME | 680 |
| Add On | 72" | 30" | DRHC723084-3A-E-ME | 680 |
| Starter | 72" | 36" | DRHC723684-3S-E-ME | 655 |
| Add On | 72" | 36" | DRHC723684-3A-E-ME | 655 |
| Starter | 72" | 48" | DRHC724884-3S-E-ME | 685 |
| Add On | 72" | 48" | DRHC724884-3A-E-ME | 685 |
| Starter | 96" | 18" | DRHC961884-3S-E-ME | 620 |
| Add On | 96" | 18" | DRHC961884-3A-E-ME | 620 |
| Starter | 96" | 24" | DRHC962484-3S-E-ME | 620 |
| Add On | 96" | 24" | DRHC962484-3A-E-ME | 620 |
| Starter | 96" | 30" | DRHC963084-3S-E-ME | 620 |
| Add On | 96" | 30" | DRHC963084-3A-E-ME | 620 |
| Starter | 96" | 36" | DRHC963684-3S-E-ME | 620 |
| Add On | 96" | 36" | DRHC963684-3A-E-ME | 620 |
| Starter | 96" | 48" | DRHC964884-3S-E-ME | 620 |
| Add On | 96" | 48" | DRHC964884-3A-E-ME | 620 |
